Alfamacchine U300P Semi Auto Production Underpinner (Connect with our team to get the best Discount!)

U-300P Semi-Auto Production Underpinner

Air-op underpinner for busy bespoke and smaller contract framers, offering fast and consistent joining.

• Joins moldings up to 80mm wide and 80mm tall
• Uses Alfa PTM v-nails inserted via sized v-nail blocks. 7mm, 10mm & 12mm blocks supplied, changed with a hex key. 5mm & 15mm blocks available as extras.
• Maximum distance between v-nails 125mm

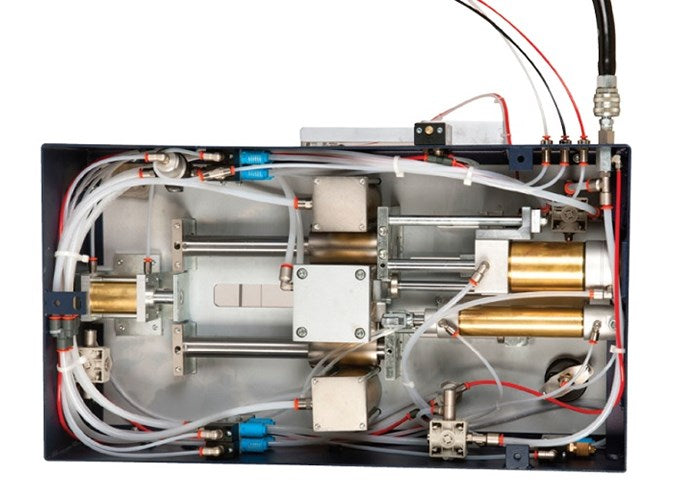

• Top pressure pad pulled down by twin pistons - this system gives maximum stability, particularly when joining harder woods.
• Molding remains clamped while the v-nail carriage moves through three v-nail positions.
• Back fences have angle and tilt adjustment to help you get the best join.
• Working height - 300mm above bench, 36kg, base 350mm x 640mm.

Why buy me? Offers fast, consistent joining - great for repetitive volume framing.

Choosing New Framing Equipment?

Special Order Expected availability: TBD. To request a stock availability update on this product please email us at info@rafigroup.ae.

• Local Gulf Regional Stockiest -  UAE Emirates, Kuwait, Saudi Arabia, Oman, Bahrain, Pakistan, Dubai, Iran, Qatar.
